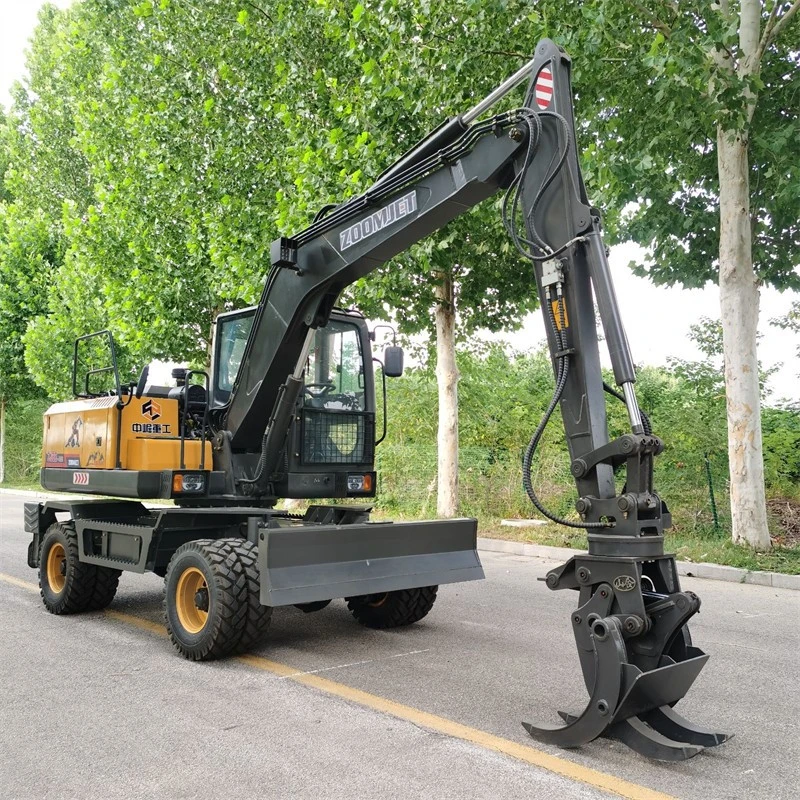

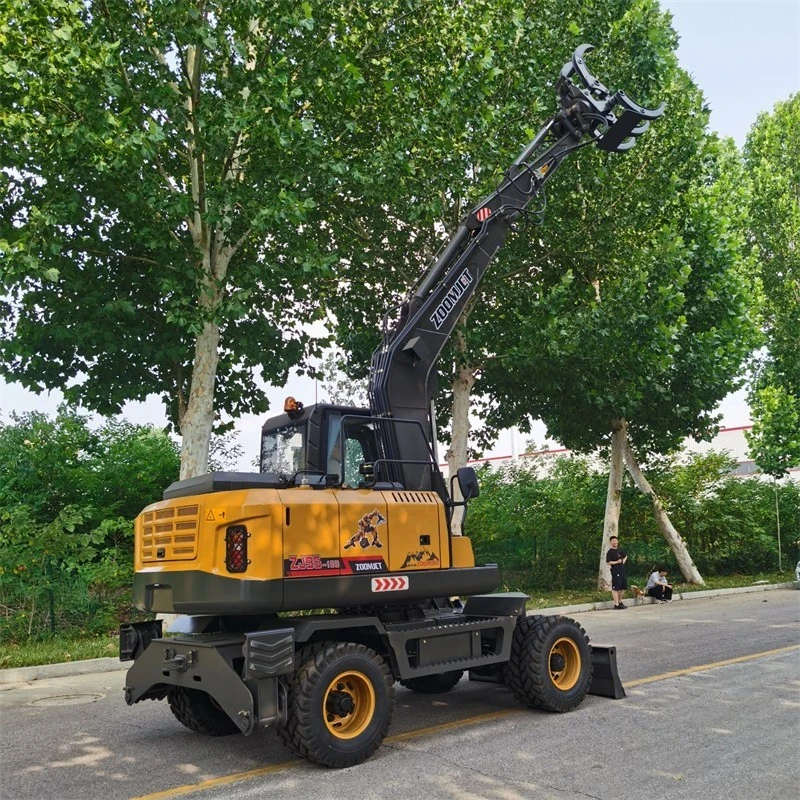

Hydraulic Wheel Excavator

The ZJ95W Hydraulic Wheel Excavator is a highly efficient engineering machine designed for versatile applications. Equipped with a standard 0.35 m³ bucket, this Hydraulic Wheel Excavator delivers strong performance in medium-duty earthmoving projects. Its well-matched bucket capacity enables efficient execution of core tasks such as excavation and loading in municipal pipeline installation, building foundation construction, and surface mining operations.
Send Inquiry
Product Introduction

Introduction



The ZJ95W Hydraulic Wheel Excavator is a highly efficient engineering machine designed for versatile applications. Equipped with a standard 0.35 m³ bucket, this Hydraulic Wheel Excavator delivers strong performance in medium-duty earthmoving projects. Its well-matched bucket capacity enables efficient execution of core tasks such as excavation and loading in municipal pipeline installation, building foundation construction, and surface mining operations.



The machine features an optimized hydraulic system that ensures fast work cycles and excellent fuel economy, effectively reducing the cost per unit of earth moved. The wheeled chassis design of the Hydraulic Wheel Excavator allows easy relocation between sites, while the small turning radius provides flexible maneuverability in confined urban streets or narrow workspaces.



The ergonomically designed cab offers excellent visibility and comfortable operation, reducing operator fatigue during prolonged use. Additionally, the Hydraulic Wheel Excavator supports quick attachment changes, such as breakers and grapples, expanding its versatility to demolition, material sorting, and other diverse working conditions. This Hydraulic Wheel Excavator is a cost-effective solution for municipal construction, small to medium-sized engineering projects, and mining operations.



Engine Model

YC4F75-T30

Gradeability

35°

Rated Power

55.8kw/2200r/min

Travel Speed

37kw/h

Dimensions (L×W×H)

6950*2100*2920mm

Wheelbase

2450mm

Boom Length

3600mm

Swing Speed

12rpm

Arm Length

2100mm

Hydraulic System Pressure

24Mpa

Max. Digging Height

7200mm

Main Pump

longon

Max. Dumping Height

5310mm

Main Valve

longon

Max. Digging Radius

6950mm

Bucket Capacity

0.35m3

Max. Digging Depth

3950mm

Min. Ground Clearance

245mm

Swing Radius

2500mm

Tire Specification

825-16
