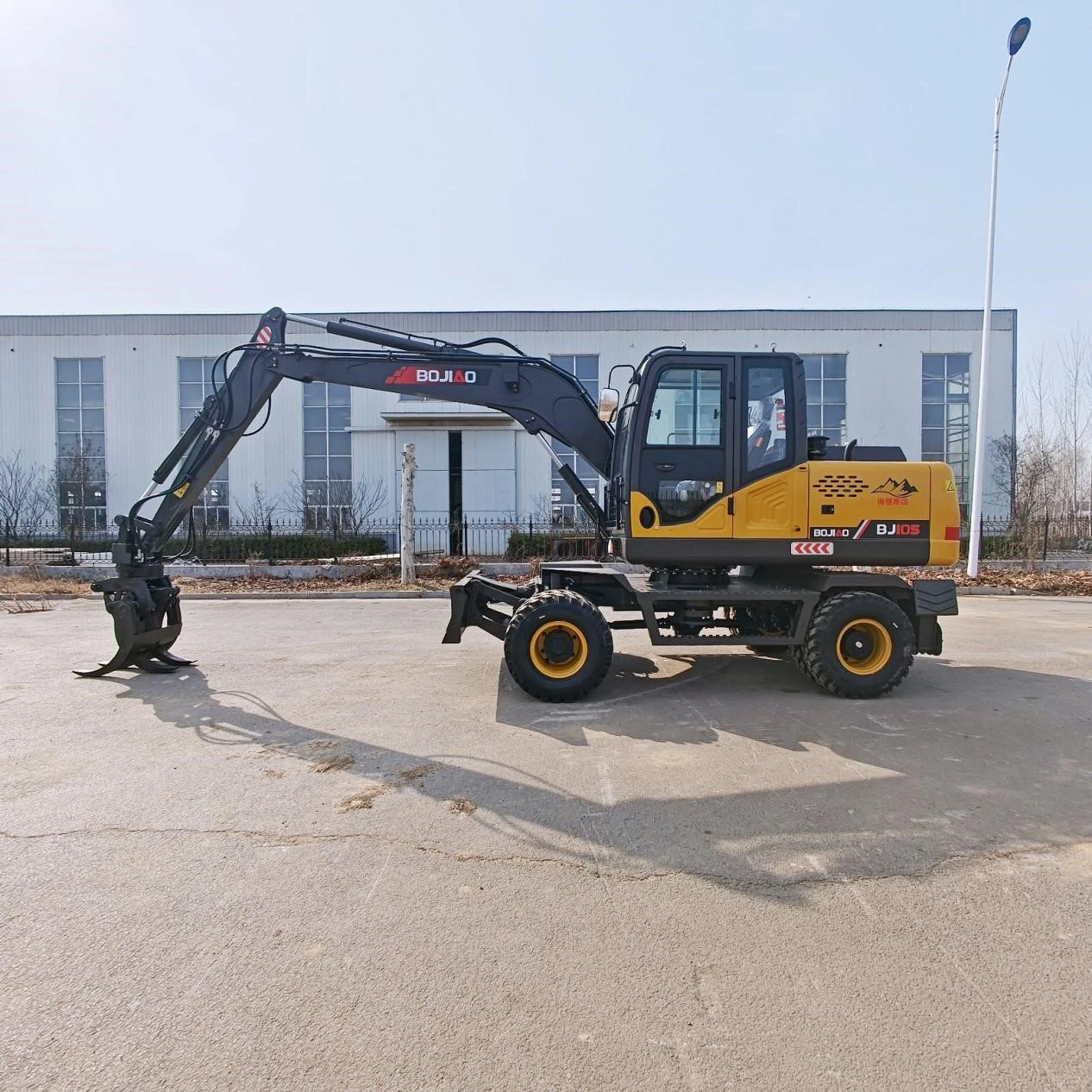

10.5-ton Wheeled Excavator

ZJ105 Performance and Component Parameters · Standard Configuration
Item: Parameter/ Item/ Parameter
Model: ZJ105/ Max. Digging Reach/ 7500 mm

Send Inquiry

Product Introduction

ZJ105 Performance and Component Parameters · Standard Configuration

Item	Parameter	Item	Parameter
Model	ZJ105	Max. Digging Reach	7500 mm
Operating Weight	9600 kg	Max. Ground-Level Digging Reach	7318 mm
Bucket Capacity	0.31 m³	Max. Digging Depth	3652 mm
Engine Model	Yuchai YC4FA85	Max. Vertical Digging Depth	3200 mm
Power	62.5 kW / 2200 rpm	Min. Swing Radius	2431 mm
Fuel Tank Capacity	147 L	Tail Swing Radius	2212 mm
Travel Speed	30 km/h	Max. Height at Min. Swing Radius	5866 mm
Swing Speed	12 r/min	Counterweight Ground Clearance	1094 mm
Gradeability	38°	Min. Ground Clearance	283 mm
Bucket Digging Force	39 kN	Wheelbase	2500 mm
Arm Digging Force	30 kN	Tire Width	510 mm
Hydraulic Pump Model	Load Sensing Variable Piston Pump (Electronic Control)	Arm Length	2200 mm
Max. Flow Rate	209 L/min	Boom Length	4000 mm
Working Pressure	24.5 MPa	Max. Attachment Dumping Height	6240 mm
Hydraulic Tank Capacity	140 L	Max. Attachment Lifting Capacity	800 kg
Transport Length	7153 mm	Max. Attachment Opening Size	1300 mm
Transport Height	2940 mm	Min. Attachment Opening Size	102 mm
Transport Width	2200 mm	Max. Attachment Lifting Height	8127 mm
Max. Digging Height	7931 mm	Max. Attachment Grabbing Height	7927 mm
Max. Dumping Height	5903 mm

Outstanding Digging Performance

Maximum bucket digging force of 39 kN and arm digging force of 30 kN demonstrate the powerful capabilities of the 10.5-ton wheeled excavator.

Optimized Undercarriage

Enhanced rigidity improves overall stability and undercarriage durability of the 10.5-ton wheeled excavator.

Robust Boom and Arm

Finite Element Analysis (FEA) optimized structure with improved welding and reinforced critical areas ensures superior stability and longevity for the 10.5-ton wheeled excavator in harsh working conditions.

Reinforced Axle & Drivetrain

Equipped with heavy-duty planetary drive axles for optimal load distribution, stability, and long service life. The reinforced axle housing of the 10.5-ton wheeled excavator enables fast travel and efficient relocation between job sites.

Excellent Mobility

The 10.5-ton wheeled excavator features all-wheel drive, high ground clearance, and a dual-balance hydraulic suspension system that automatically adjusts to uneven terrain, keeping the cab level during operation.

Durable Frame & Structure

High-tensile steel frame with forged reinforcements at the boom foot provides exceptional strength. The extended boom (4000mm) and arm (2200mm) of the 10.5-ton wheeled excavator enhance productivity, while box-section welding increases the bending section modulus by 14%, significantly improving durability in demanding applications.
